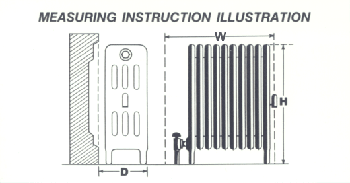

W= WIDTH   H= HEIGHT   D= DEPTH

Width: Measure beyond pipes and valves on both ends. Choose width that gives you enough room for fit and balance.

Height: Measure from floor to top of radiator. Add at least one inch and choose nearest standard height to fit.

Depth: Leave ample room both in front and in back of radiator - choose depth which is larger than radiator.

Make certain that enclosures can be slipped over the top. If radiator is recessed, give height of radiator and height of bottom sill or opening, and we will make suitable back-apron to slip in. We can also make the unit without a back for ease of installation. However, we do not suggest a tight fit for recessed or semi-recessed radiators.

Add at least 2" or more to the existing width of your radiator.

Add at least 1" or more to the existing height of your radiator.

Add at least 1" or more to the existing depth of your radiator. (2" for Oxford, Cambridge, Newport, Eton)

When floor is uneven order with adjustable legs.

On enclosures over 34" high, we can at no additional cost provide you with a valve door if desired.  Advise us which side your valve is located.

We will automatically add 3/4" more in length when completed and 1/2 more in height and depth.

NOTE:
If you need your enclosure an exact size, or have any cutouts you may need for pipes or moldings, please use our Radiator Diagram sheet to provide us with your measurements. Just click here for the link for our "SKETCH SHEET" , Print it and fax to us at 516-569-2915.

If you have any questions, please contact us at 516-569-2914 Or toll free at 877-913-3100
